The MediaHub Mini provides guests with the most important, and universally accepted mobile connections to charge and play. Guests can use the USB fast-charging to charge their mobile devices. Bluetooth pairing means that your guests can listen to their music over the TV speakers without docking, providing the freedom to roam and multi-task. HDMI is the universal method for connecting mobile phones, tablets, laptops, digicams, and gaming consoles to HDTV’s.

1. Flush Mounts into wide range of furnishings, millwork, casegoods, and partition walls.

2.1 Amp, 5 volt USB charge port for tablets and smart phones.

3. 1 Amp, 5 volt USB charge port for simultaneously charging additional phone or accessory.

4. Bluetooth pairing point for wireless audio playback on the TV speakers.

5. Audio jack option for audio playback on the TV speakers.

6. HDMI port for displaying your movies, videos and photos on the in-room TV.

7.Automatic Input switching via HDMI-CEC for any CEC enabled TV (Automatic Input switching for older displays using optional RS232 cable).

8. Small footprint and choice of rubberized black or brushed metal finish, provide designer friendly aesthetics.

9. Simple Installation - Power Supply and 3.5m HDMI cable included.

MediaHub Mini Front Ports
A Mini Stereo Jack
B HDMI Audio/Video
C Bluetooth Audio Pairing Point for Universal
Wireless Music Playing
D High-Current 2.1 amp, 5 volt USB Charging Socket
E 1 Amp, 5 Volt USB Charging Socket

Outside Bezel Dimensions
3.38” x 3.38” (86 x 86 mm)

Connection Requirements
• 1 HDMI port on the TV
• 1 AC/Mains Power Outlet

Cables & Power Supply Included
• 11.8’ (3.5 m) HDMI cable
• 6 ft. (1.8 m) Power Supply.

Auto Input Switching is supported over HDMI-CEC. Compatible with most hospitality TV’s and VOD systems.

Optional RS232 cable available for automatic input switching on older models

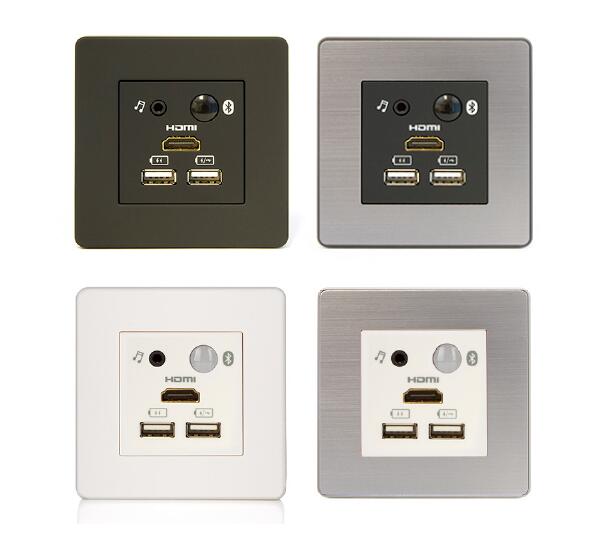

Available Trims
The MediaHub Mini is available in black or white. Each colour option also comes with a brushed aluminum trim. Compact and stylish, they are designed to fit any hotel room decor.
